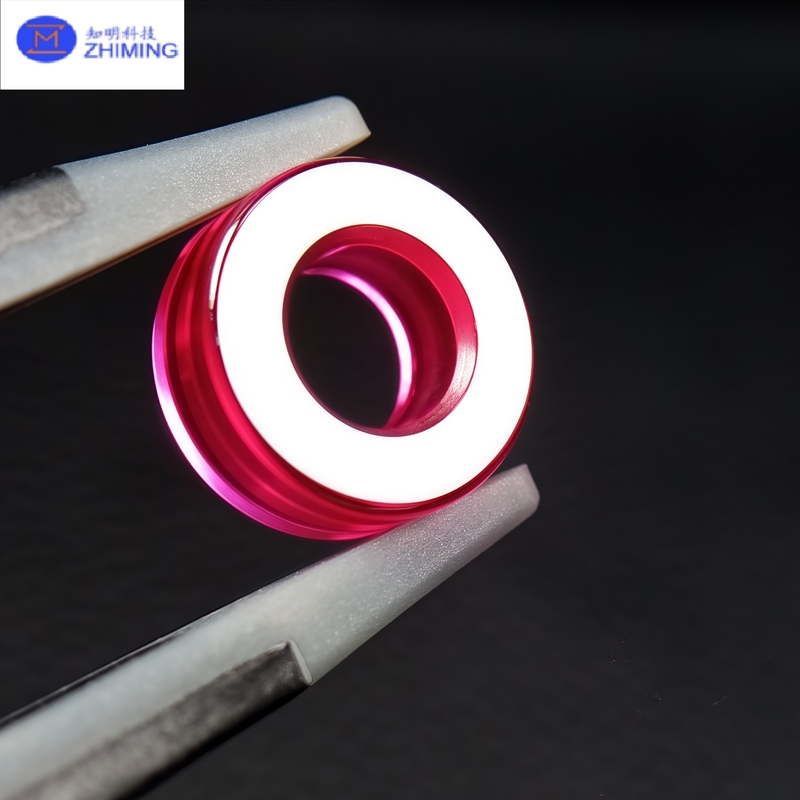

Overview of Ruby bearings

Ruby bearings, also known as jewel bearings, are specialized precision components designed to provide superior performance in applications where accuracy, durability, and low friction are critical. Made from synthetic ruby (Al₂O₃ doped with Cr₂O₃), ruby bearings exhibit exceptional hardness, wear resistance, and stability. These properties make ruby bearings an indispensable choice in a wide range of industries, including horology, aerospace, medical devices, robotics, and optical instrumentation.

Material & Advantages of Ruby Bearings

Synthetic ruby, a laboratory-grown single-crystal form of aluminum oxide, is one of the hardest engineering materials available, with a Mohs hardness of 9, second only to diamond. This hardness allows ruby bearings to withstand high loads and resist wear even in continuous operation. The addition of chromium ions gives ruby its distinct red hue while maintaining its superior physical characteristics.

Another critical advantage of ruby bearings is their low coefficient of thermal expansion, which ensures that the bearing maintains precise dimensions even when exposed to fluctuating temperatures. This is especially vital in aerospace, metrology, and high-precision instruments, where even slight dimensional changes can impact performance.

Key Features of Ruby Bearings

•

  Extreme Hardness and Wear Resistance: The durability of ruby bearings ensures a long service life, even in high-speed or high-load applications.

​

• Ultra-Low Friction: The polished surfaces of jewel bearings minimize friction, reducing energy consumption and heat generation.

​

• Dimensional Accuracy: Manufactured to micron-level tolerances, ruby bearings guarantee consistent, precise motion.

​

• Corrosion and Chemical Resistance: Unlike metal bearings, ruby bearings remain unaffected by most chemicals, acids, and oxidation.

​

• Thermal Stability: Operates reliably in environments ranging from cryogenic conditions to elevated temperatures.

Applications of Ruby Bearings

1. Precision Instruments:
Used in micrometers, dial indicators, and high-accuracy measuring devices, ruby bearings ensure smooth and consistent movement, vital for maintaining measurement integrity.

2. Horology:
In luxury watches and clocks, jewel bearings reduce friction and wear, extending the life and accuracy of timekeeping mechanisms.

3. Medical and Laboratory Devices:
Ruby bearings are integral to syringe pumps, infusion devices, and dental tools, providing dependable, low-maintenance operation in critical medical applications.

4. Aerospace and Defense:
Used in gyroscopes, navigation systems, and missile guidance, ruby bearings offer reliability in extreme environments where failure is not an option.

5. Optics and Photonics:
From laser alignment systems to optical scanners, ruby bearings ensure stable, precise motion control essential for high-tech optical applications.

Conclusion

Ruby bearings are the optimal solution where reliability, precision, and longevity are critical. These jewel bearings outperform conventional metal or plastic bearings in high-demand environments, ensuring stable and efficient performance.

FAQ – Ruby Bearings (Jewel Bearings)

Q1: What are ruby bearings made of?
A1: Ruby bearings are made from synthetic ruby, a single-crystal form of aluminum oxide (Al₂O₃) doped with chromium for its distinctive red color and superior hardness.

Q2: Why use ruby bearings instead of metal bearings?
A2: Ruby bearings have superior wear resistance, lower friction, and better stability under temperature changes compared to metal bearings, leading to longer service life and higher accuracy.

Q3: What industries rely on ruby bearings?
A3: Industries such as horology, aerospace, medical devices, robotics, and precision instrumentation use ruby bearings for their accuracy and reliability.

Q4: Can ruby bearings operate in harsh environments?
A4: Yes. Ruby bearings resist corrosion, extreme temperatures, and chemical exposure, making them ideal for challenging industrial conditions.

Q5: Are ruby bearings cost-effective?
A5: Although their initial cost may be higher, their durability and low maintenance needs provide long-term cost savings.
